ESSENTIALS
Vehicle: 2003 Mitsubishi Evolution
Owner: Chad Shirtliff
Location: Winnipeg, MB
Built By: Perfect Performance, DB Performance, Excell Autobody
Engine: Mitsubishi 4G64 2.4L turbocharged I4
Horsepower: 806 hp @ 40 psi
Torque: 692 lb-ft
Social Media: @perfectperformancecanada
- Mitsubishi Evo VIII 4G63 head
- Full Race port & polished head
- Supertech (oversized valves, dual valve springs)
- Precision Turbo 6466 T4 1.15AR turbocharger
- Garrett 4-inch Race intercooler
- Shop 6 custom hoses
- Tial (50-mm blow-off valve, 38-mm wastegates [2])

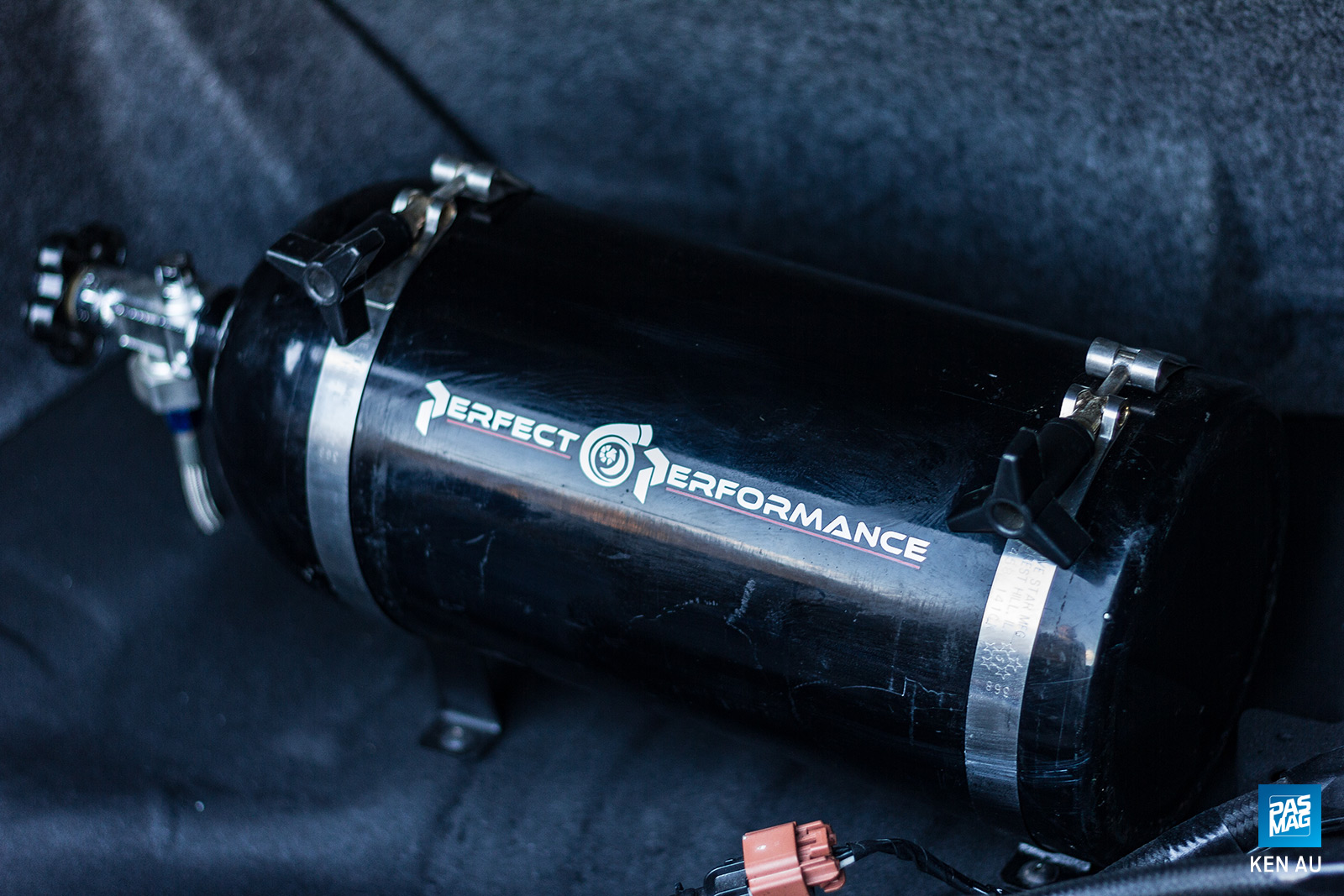

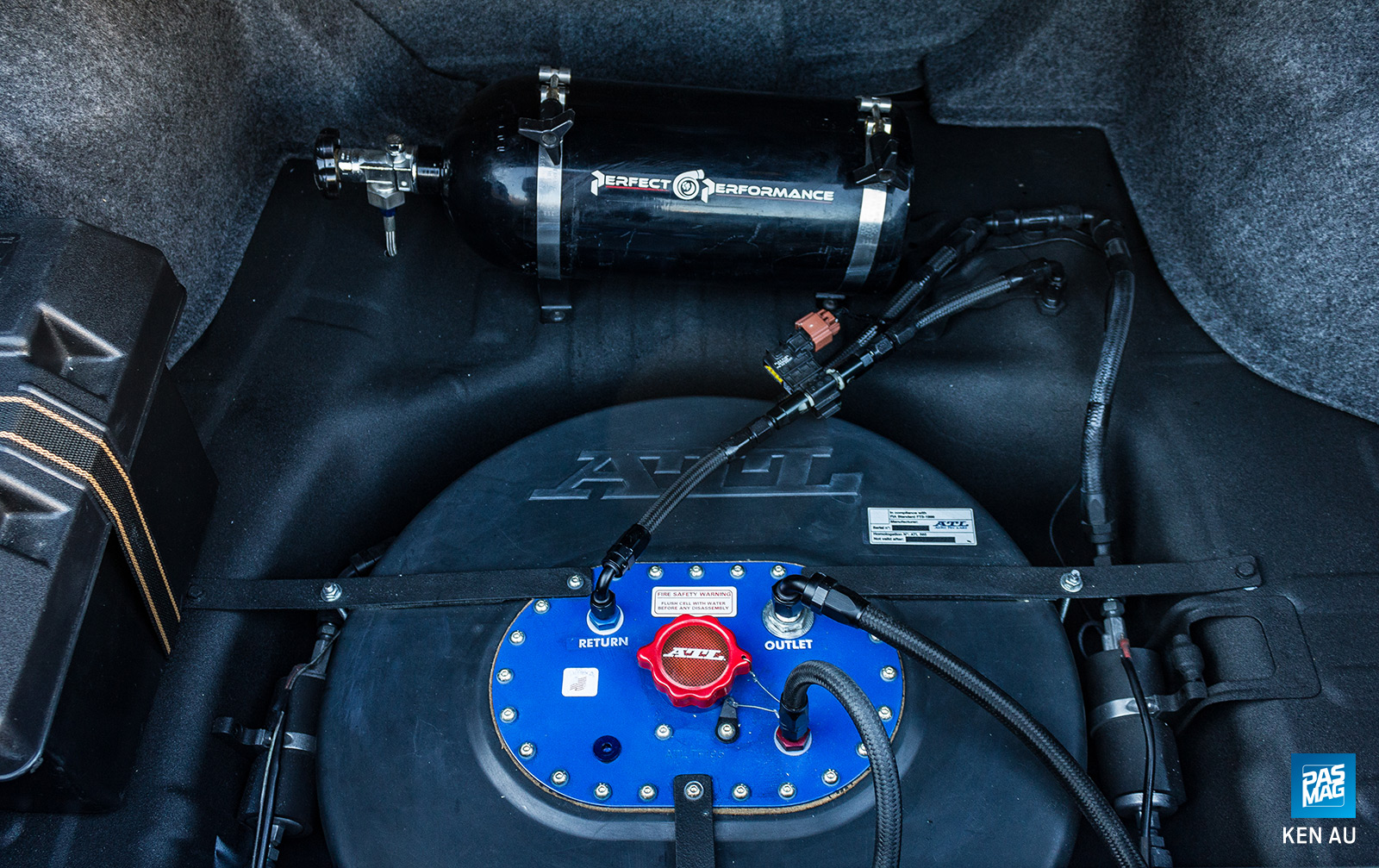

- MPS dry nitrous system
- K&N air filter
- Boomba throttle body
- Magnus Motorsports intake manifold
- Perrin Performance fuel rails
- Aeromotive fuel pressure regulator
- Walbro 225-lph fuel pump
- Bosch 44-lph fuel pumps (2)
- Kelford 272 camshaft
- HKS cam gears
- FIC fuel injectors (1,100-cc set, 2,150-cc set)
- NGK spark plugs
- Spark Tech ignition coils
- Custom grounds
- Manley (billet 100-mm crankshaft, 156-mm I-beam rods, 86.5-mm 10:5:1 pistons)
- Total Seal piston rings
- Cometic head gasket
- ARP 625 head studs
- AEM Infinity 8H ECU
EXHAUST
- AMS Race exhaust system
- Sheepey Built Race (header, up-pipe, down-pipe)
DRIVETRAIN
- Exedy (triple-plate clutch, flywheel)
- Perfect Performance spec carbon fiber synchros
- Quaife differential
WHEELS/TIRES/BRAKES

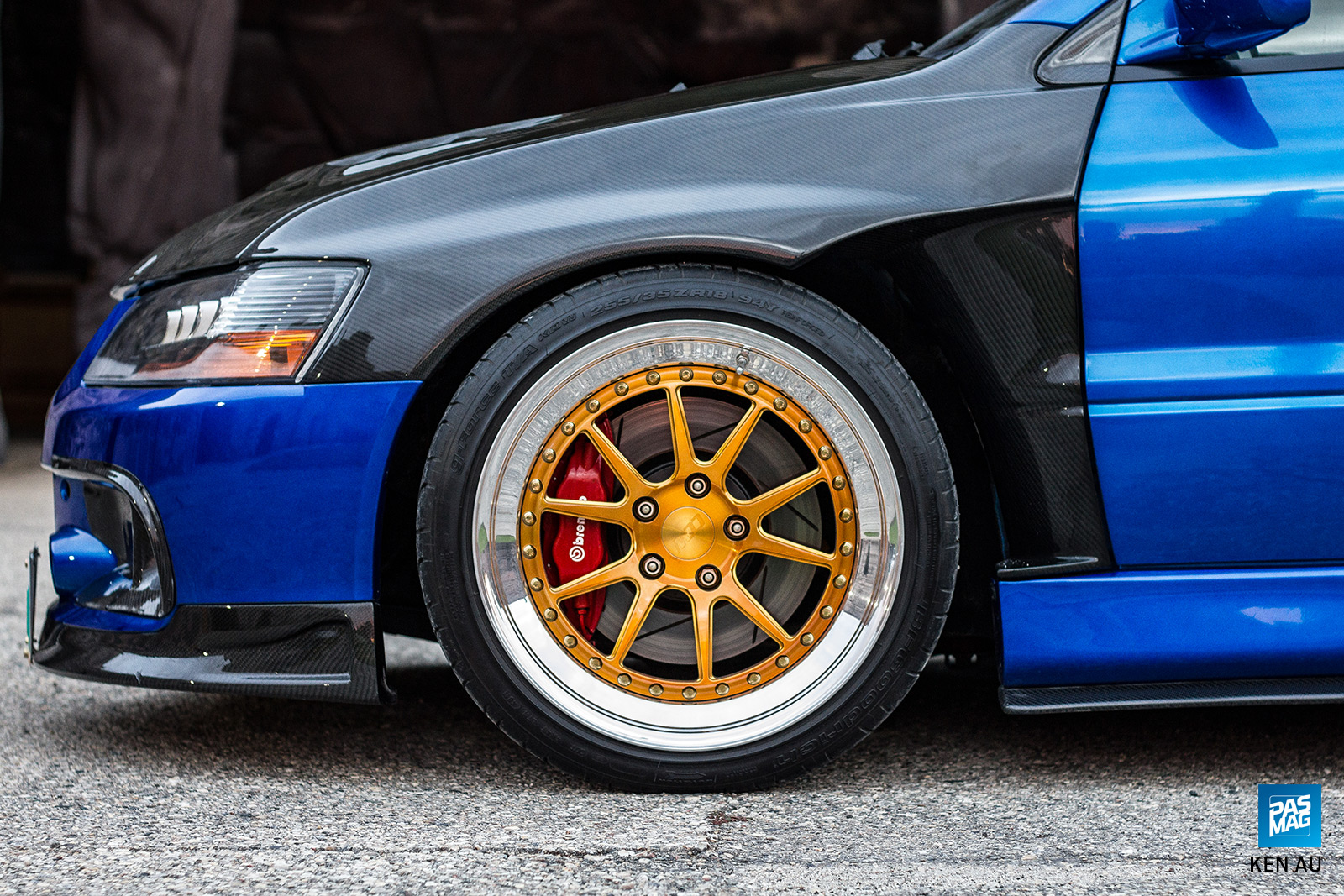

- CCW wheels - 18x10 +15 (f&r)
- BFGoodrich KDW2 tires - 255 35 R18 (f&r)
- Brembo Evo X brake kit - 4-piston, slotted rotors (f), 2-piston, slotted rotors (r)
- Braided brake lines
- Hawk HPS brake pads
- Amsoil brake fluid
CHASSIS/SUSPENSION
- Cusco (coilovers, under bracing)
- Whiteline (sway bars, strut bars [f&r])
- Energy Suspension bushings
- BWR adjustable LCAs (r)
EXTERIOR
- Lamborghini blue custom paint
- Mitsubishi (Evo IX front bumper, JDM Evo IX rear bumper, JDM Evo VII taillights)
- Victory Function carbon fiber fenders
- Voltex 5V wing
- Rexpeed (side skirt extensions, ducts)
- Acura 2015 TLX headlight “jewel” retrofit
INTERIOR
- Forged Performance shift knob
- Suede shift boot
- AEM gauges
- Kevlar custom gauge pods (2)
- Mitsubishi JDM Evo IX SE seats
AUDIO MULTIMEDIA
- Alpine head unit
- XS Power battery
