ESSENTIALS
Vehicle: 2015 Mitsubishi Evolution X Final Edition
Owner: Devan VanBrunt
Built by: DSG Performance, Turcotte Racing, Aerolab MTL, Big Boy Toyz Fabrication
Location: Montreal, QC
Engine: Mitsubishi 4B11T turbocharged 2.0L I-4
Horsepower: 712-800 whp
SOCIAL
Facebook: Devan VanBrunt
Instagram: @devanvanbrunt1
ENGINE
- Precision Turbo Gen II 6266 BB turbocharger
- Darton wet sleeves
- ACL high performance w/ extra oil clearance (main bearing set, rod bearing set)
- Cosworth 87-mm x 1.3-mm head gasket
- ARP (head stud kit, main studs)
- Manley (Extreme Duty piston set w/ rings - 86.5-mm +0.5-mm bore; 9.0:1 dish, Turbo Tuff Pro Series I-beam connecting rod set)
- AMS Performance (TMP camshafts, polyurethane motor mount bushings set, short ram MAF intake, aluminum valve cover, fuel
- pressure regulator, fuel rail kit w/ pulse dampener)
- Ferrea (dual valve springs, titanium retainers, Competition Plus 1-mm oversize valves)
- Torque Solution aluminum rear engine mount
- Blitz intake manifold - port matched to throttle body & head
- Fluidampr internally-balanced steel crank damper
- Ignition Projects direct ignition coil
- Driven Fab (power steering reservoir, V3 catch can, coolant expansion tank w/ -10AN metal cover upgrade & PCV delete)
- Magnus MIVEC Delete (intake & exhaust)
- Moroso race baffled aluminum oil pan
- Mitsubishi Eclipse GT V6 3.8L 65-mm throttle body retrofit
- Turcotte Racing (fully match-ported head, engine build, engine assembly, custom 3-inch LICP w/ 3-inch outlet)
- ETS (4-inch FMIC, 3-inch custom intercooler outlets, intercooler piping kit)
- Tial (MVR wastegate, Q blow-off valve, 11-PSI spring)
- Mishimoto (X-LINE radiator, aluminum fan shroud kit, oil cooler kit, silicone hose kit, 68-degree racing thermostat)
- Injector Dynamics (ID2000 fuel injectors, USCAR to Denso adapter)
- Radium Engineering (double fuel pump hanger replacement, -10AN feed lines, -6AN return lines)
- Walbro fuel pumps (2)
- Driven Fabrication flex fuel kit
- APR Performance radiator cooling plate
- Big Boy Toyz Fabrication engine bay powdercoating
EXHAUST
- ETS (V2 Extreme exhaust system w/ resonator, test pipe)
Featured in PASMAG Tuning Essentials: Ultimate Performance Guide Vol. 5. Click here to order.
DRIVETRAIN
- Sheptrans (GSR 5-speed built transmission, Stage II T-case, hybrid X/9 900-hp axles)
- Cusco (Evo 9 1.5-way MZ rear diff - 4.30 final drive & 0.857 5th gear)
- Custom rear diff mount - deletes Evo X AYC
- DSS 2-piece carbon fiber CV driveshaft
- Torque Solution (driveshaft carrier bearing support bushings, solid differential bushing w/ billet inserts)
- AMS Performance (triple metallic push-style clutch kit, clutch master cylinder conversion, braided clutch line)
- TWM complete cage replacement short shifter w/ all bushings & weighted shift knob
Featured in PASMAG Tuning Essentials: Ultimate Performance Guide Vol. 5. Click here to order.
CHASSIS / SUSPENSION
- Whiteline (sway bars (f/r), end links (f/r), roll steer correction, rear control arms
- Cusco (front swivel tow hook, strut bars (f/r), Power Brace complete setup)

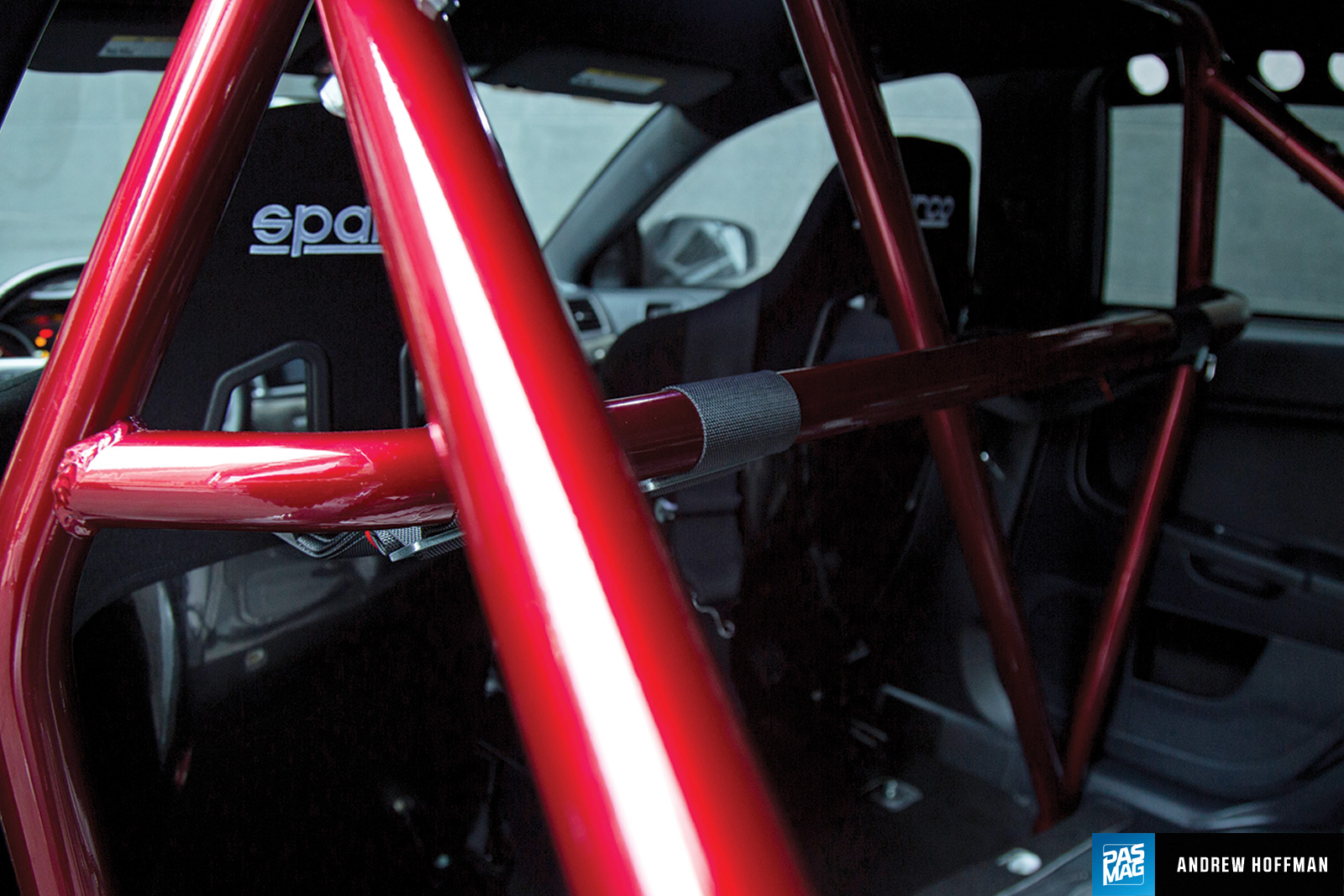

- Autopower race roll bar
- Mitsubishi JDM crash beam
- Fortune Auto DSG Edition (510 Series coilovers, air piston cup kit)
- Accuair air management
Featured in PASMAG Tuning Essentials: Ultimate Performance Guide Vol. 5. Click here to order.
WHEELS / TIRES / BRAKES
- Gram Lights 57DR wheels – 18x10.5 +12 (f/r)
- Big Boy Toyz Fabrication wheel powdercoating
- Wheelmate Muteki SR48 open-ended lug nuts
- Nitto Invo tires – 295/35 R18 (f/r)

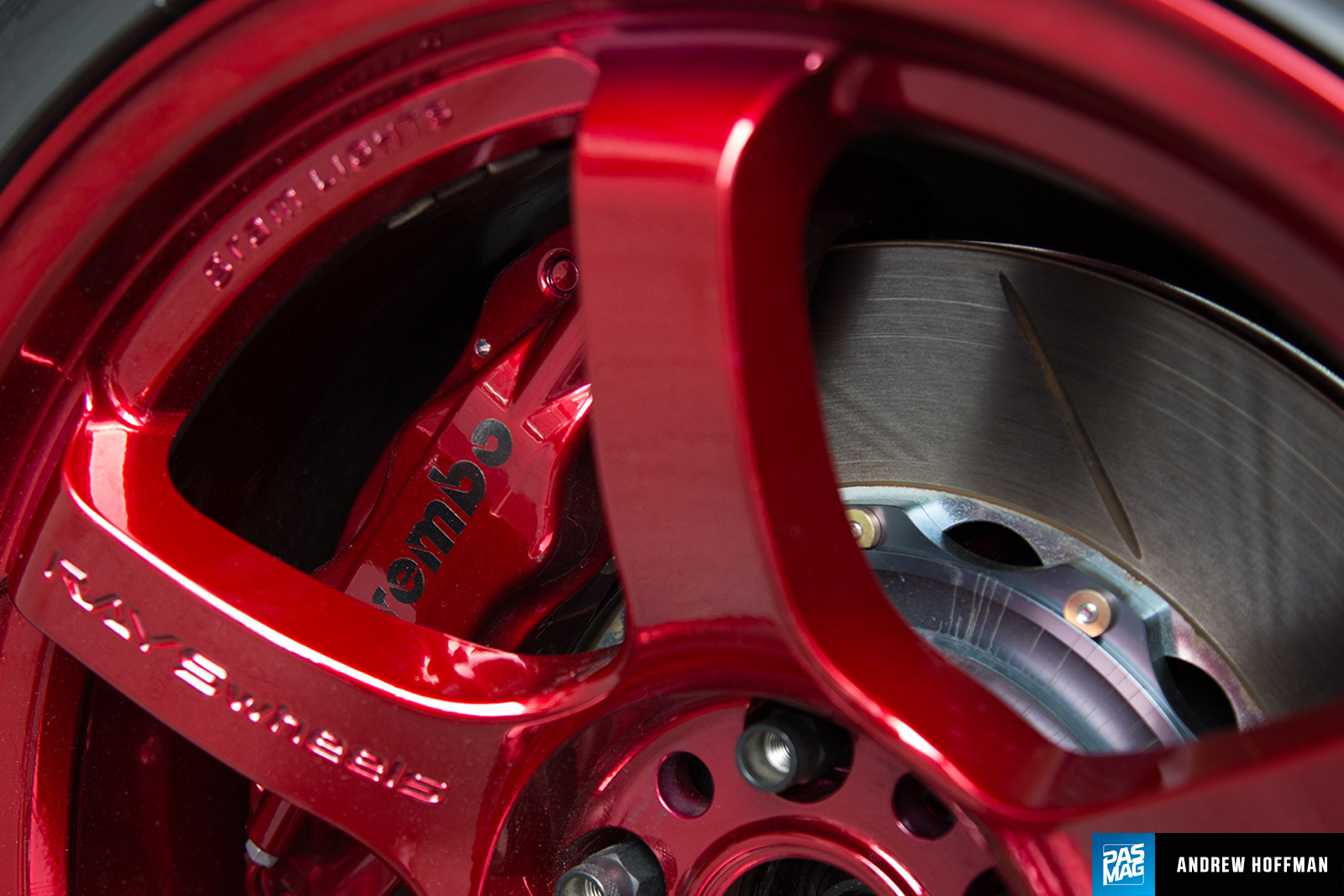

- GiroDisc (brake rotors, Magic brake pads, titanium shims)
- AMS braided brake lines
- Motul RBF600 DOT4 brake fluid
Featured in PASMAG Tuning Essentials: Ultimate Performance Guide Vol. 5. Click here to order.
EXTERIOR
- Aerolab MTL bodywork & paintjob
- Varis (Type B widebody kit, carbon fiber canards (2), 1,600-mm carbon fiber Euro wing, carbon fiber rear diffuser, carbon fiber exhaust heat shields, carbon fiber Ultimate Cooling Bonnet)
- DoLuck FRP trunk
- SSP 2-piece aluminum undertray
Featured in PASMAG Tuning Essentials: Ultimate Performance Guide Vol. 5. Click here to order.
INTERIOR

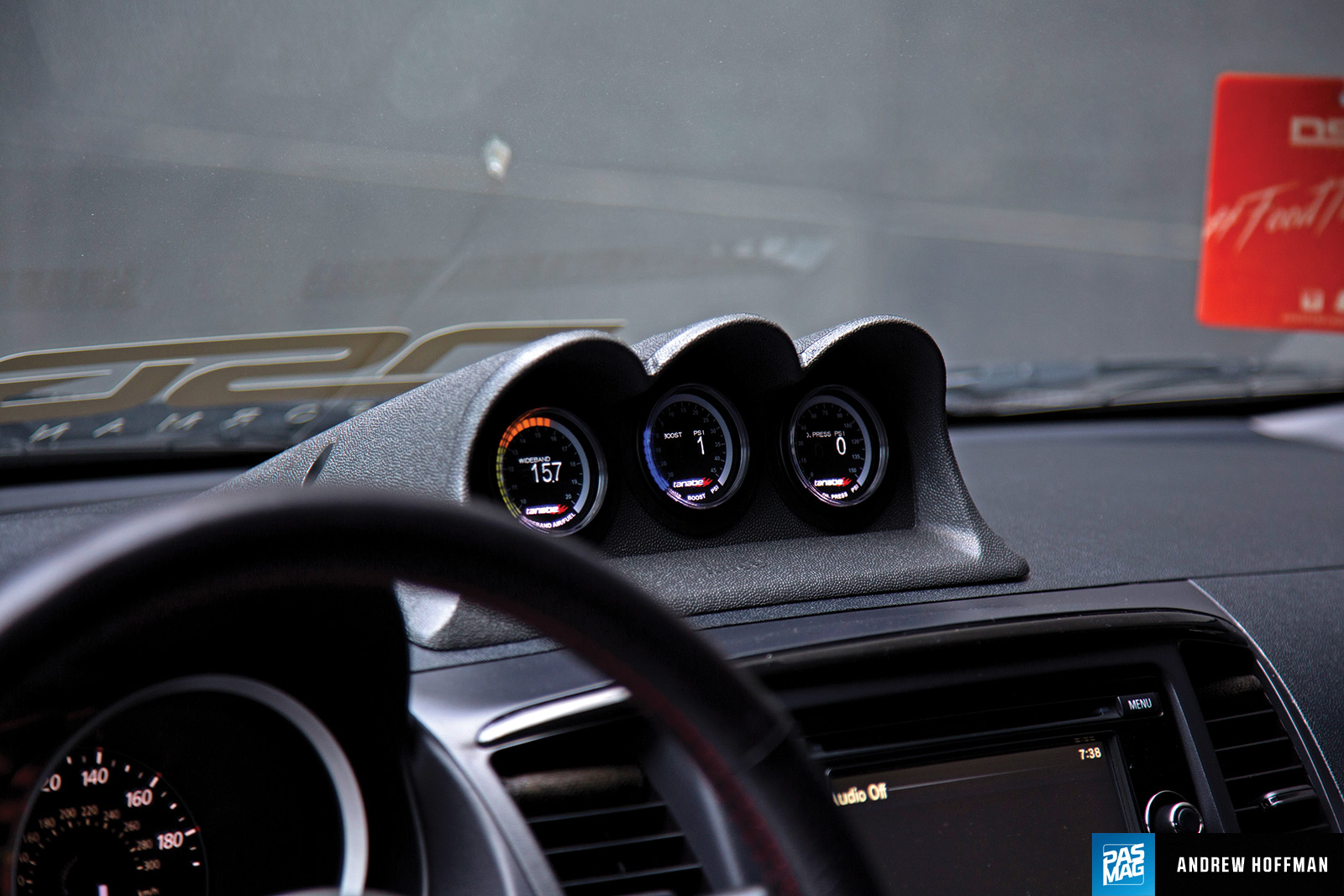

- ATI (60-mm triple pillar pods, 52-mm to 60-mm conversion rings)
- Tanabe Revel gauges (boost, AFR, oil pressure)
- Aerolab MTL carbon fiber trim pieces
- Sparco (Evo II US racing seats, harnesses)
- RexSpeed carbon fiber rear window vents
Featured in PASMAG Tuning Essentials: Ultimate Performance Guide Vol. 5. Click here to order.
